Firehouse of Palma de Mallorca / Jordi Herrero Arquitecto

© Jaime Sicilia
The site is located in the center of Palma de Mallorca with shortcuts to the city center and the ring road in both directions.

The main building accommodates the site boundaries. The diagonal divides creating two courtyards, one of practices and other emergencies.


Functionally the building has three major areas:
  1. An administrative and reception area.
  2. Exhibition area (fire trucks and old equipment).
  3. Area firefighters work, including emergency parking, daytime areas, sports area (indoor pool, and a fitness multipurpose) and bedrooms.


The complex also features a private parking and a practice area with a 30-meter tower, a training module Flash Over, classrooms and locker rooms for practice and a truck garage.

Conceptually, the project has three elements.
  1. Concrete trays. Built by slabs on pillars grid 8 x 8 m. Forming the skeleton of the building. Program to organize freely.
  2. Boxes. Constructed using prefabricated systems. They house private spaces and organize open. Its position and size to suit every need. The system allows the redistribution to future needs a simple manner.
  3. Skins. Formed by vertical strips of stainless steel mesh. Filter the light and clothe the building.

The result is an organic piece, kinetic, moody, which is designed to be seen from the highway, at speed.
The project materials were selected with the criterion of minimum maintenance and high durability. The main materials are concrete slabs, panels colored thermosetting resin, low emissivity glass, stainless steel tensioned mesh, panels of galvanized steel, ceiling panels of steel, granite, concrete and rubber pavement and high quality luminaries


© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia

© Jaime Sicilia







http://www.archdaily.com/267797/firehouse-of-palma-de-mallorca-jordi-herrero-arquitecto/

miércoles, 30 de octubre de 2013

Guangzhou South Railway Station / TFP Farrells


© Nick Hufton
Located at the heart of the Pearl River Delta region, Guangzhou South Railway Station lies between the cities of Guangzhou and Foshan. The Station will be a comprehensive multi-modal transportation infrastructure serving a catchment area of over 300-million people. Part of China’s new high-speed rail network that incorporates four new major transport hubs including Guangzhou South Railway Station and Beijing South Railway Station (also designed by TFP Farrells and completed in 2008). The first phase of Guangzhou South Railway Station opened to the public on January 30, 2010, a world-class transportation hub connecting the cities of Beijing—Wuhan— Shanghai—New Guangzhou—Hong Kong.


Completed in the year 2010, the Station is among the world’s largest train stations, roughly equal to three times the size of London’s Kings Cross Station. In addition to its train services, it will be a significant interchange to other modes of transport, including taxi, car, metro and bus. By 2030, passenger flow will reach over 300,000 daily. In order to accommodate the large volume of passenger movements, a clear vertical organization strategy has been adopted. Metro lines and concourse comprise two basement levels; all train arrivals are at ground level connecting directly to other transport modes including the metro below; departures are from an elevated concourse with spacious waiting rooms and clear views to the 28 platform edges below. Located in-between the departure concourse level and the arrival level are the 28 elevated viaduct platforms for high-speed trains.

Atrium spaces are located at the main drop-off entrances at either end of the station. These atriums unite the elevated departure concourse platforms and waiting hall, with the ground level arrivals hall. The departures hall features food and beverage outlets and spacious waiting rooms for greater passenger comfort. Bisecting the main central roof is a 348m long central skylight spine that is widest near the entrances and narrows towards the centre, providing an order to the departure concourse and refining the circulation route.

The skylight is constructed of a diagonal grid of structural steel in a barrel vault form and clad in ETFE air cushions which provide maximum natural daylight to the station interior whilst minimising heat gain. The roof forms are barrel vaults reminiscent of traditional Victorian railway halls with a standing seam roof that is angled at 45 degrees to evoke the natural structural form of leaves. Skylights are positioned between the railway tracks so that natural light can also filter down to the ground level arrival hall. Curved at each end, the roof protects the passengers on the platforms from the elements.

Another driving force behind TFP’s open-plan station arrangement was the desire to assist passenger orientation in the station planning. The use of 68-metre spans create column-free waiting rooms on the elevated concourse while passengers on other levels have good visual connection with escalators, lifts, entrances and similar other facilities.

The design’s primary themes are the connection of Guangzhou and Foshan to either side of the station and the opportunity afforded by the green-field site to make this essentially a “garden” station which will act as a catalyst for the generation of an entirely new urban area. The masterplan addresses both districts with the creation of two landscaped urban plazas constituting the entrances to the station. The geometry of the entrance canopies continues from one side to the other via a light filled central spine. This spine is the main concourse at departure level and comprises a series of landscaped areas with waiting halls to either side. Ensuring the station acts as a unifying element in the new city, the tracks are elevated allowing free pedestrian access via the landscaped arrival concourse.

The form is an expression of the station’s functional programme. The spine signifies the connection between the plazas; the central roof connecting the spine defines the extent of climatic enclosure at the upper level. The combination of skylight and curved form provide positive definition and expression of the circulation space and give the passenger a very clear sense of orientation.

The design of Guangzhou South Railway Station strikes a relaxed balance between function and formal expression. This is achieved through the concise articulation of meticulously designed structural elements, which simultaneously endows the station with a unique identity. Not only will the station generate a new urban area, it will also be of significant importance in promoting the rapid development of a regional economy.


© Nick Hufton

© Nick Hufton

© Nick Hufton

© Nick Hufton

© Nick Hufton

© Nick Hufton

Courtesy of TFP Farrells

Courtesy of TFP Farrells


Courtesy of TFP Farrells

Courtesy of TFP Farrells


martes, 29 de octubre de 2013

Villa Escarpa / Mario Martins

© FG+SG

Descripción de los arquitectos. Villa Escarpa se encuentra cerca del pueblo de Praia da Luz, en el distrito de Lagos, Algarve, en el sur de Portugal.

Una condición del permiso de planificación es que la nueva casa se construirá en el espacio ocupado por un edificio anterior. Esto tuvo poco mérito arquitectónico o técnico, pero se encuentra en una posición excepcional en un acantilado con vistas a la costa del Algarve y el pueblo de Praia da Luz.

Por tanto, la huella estaba predeterminado, en una pendiente muy empinada y expuesta a los vientos dominantes. Paradójicamente, son estas limitaciones y dificultades que sustentan la base conceptual del proyecto.

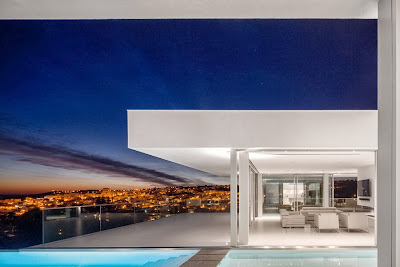

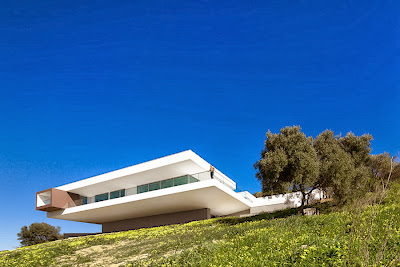

En un lenguaje arquitectónico, puro y contemporáneo, creamos terrazas cubiertas y patios para la vida al aire libre. Estos se cortan a partir del volumen horizontal que es de color blanco y altamente transparente. Este volumen se sienta suavemente sobre un soporte de hormigón a la vista dando la apariencia de la casa flotante sobre el paisaje. El contacto en el medio ambiente, lo que queremos preservar, se reduce al mínimo y se resuelve el difícil equilibrio del edificio con su soporte físico. Esto asegura una ligereza visual deseable.

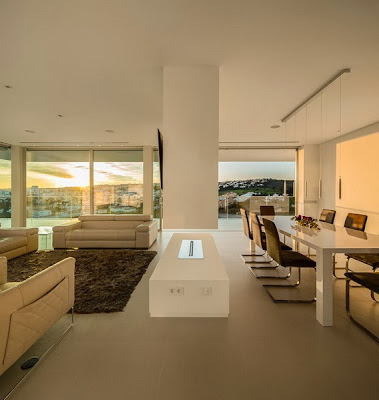

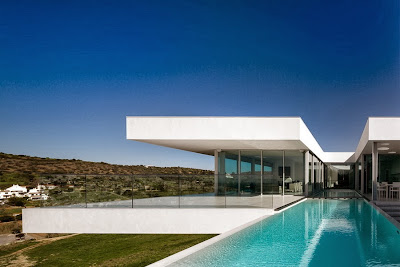

La casa se funde con una larga superficie de agua, que disecciona el espacio de la cocina y el amplio salón. Estos espacios se complementan con terrazas protegidas del viento, pero abierta al sol y a unas vistas impresionantes. Esta es la zona social de la casa, abierta y fluida.

Cuatro dormitorios se encuentran en una zona privada con acceso desde un pasillo que bordea un patio central. En este patio privado la luz natural que se filtra, la creación de un espacio íntimo y deseable.

La parte inferior proporciona un garaje y apoyo técnico. La terraza de la azotea acentúa la ligereza visual del edificio flotante en su entorno.

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG

© FG+SG
